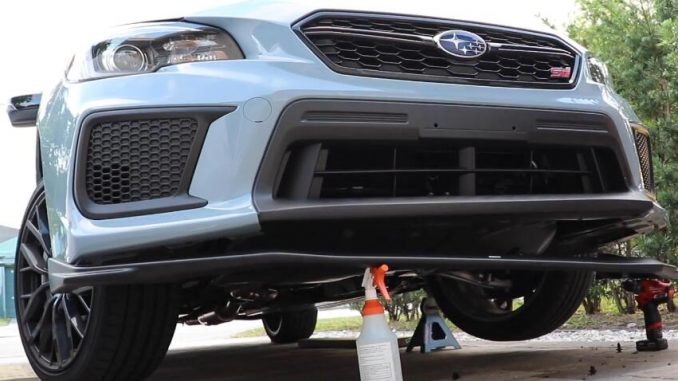

This instruction will show you the procedure of installing STI front lip on the 2019 Subaru STI series gray. Installation should be similar on all 2015+ WRX/STI models.
If you are interested in more cases about Subaru,please click Subaru.
Clean up the area to make sure we can see all the marks which holes we’re going to drilling.
Prepare 3mm–>6mm–>–9.5mm metric bit, if you don’t have a metric bit set, so you can use standard sizes.
Here we use the 1/8″ the 15/64″ and 3/8″.
1/8″ bit drill holes
15/64″ do same things, get holes larger
Attached part for the sides only to mark the hole
Follow the edge and you can find the mark, same do the other side.
After drilling the hole, take the part off
Plug little pieces included in the hardware
Remove below marked clips that’s already attached to the bumper cause we’re going to replace it with one that came with the hardware set on the lip.
Amount the lip
Put the screws in those plastic clips on the corner. there the back and the sides because he holds it up for you.
