What is the primary difference between MB Star C4 and C6?

The SD Connect C4 is a traditional multiplexer optimized for pre-2020 vehicles using K-Line and standard CAN networks, working natively with DAS, Xentry, and Vediamo. The Xentry VCI C6 is a modern Vehicle Communication Interface (J2534/ISO 22900 compliant) that natively supports high-speed DoIP (Ethernet) and CAN-FD protocols required for 2020+ chassis like the W206, W223, and EQ series.

Is the MB Star C5 better than the SD Connect C4?

In the aftermarket/clone market, no. Most aftermarket MB Star C5 units use standard C4 internal motherboards housed inside an injection-molded plastic shell, offering no functional or speed improvements. A well-built aluminum-cased SD Connect C4 with DoIP is generally more durable and provides superior thermal dissipation.

Can I perform online SCN coding with an MB Star C4 or C6?

Yes. Both C4 and C6 hardware support online SCN coding. However, SCN coding requires an active, paid Mercedes-Benz dealer portal subscription and login credentials. The multiplexer acts only as the interface; it does not bypass the need for an official account.

Which MB Star diagnostic tool is needed for older cars requiring HHT-Win?

For classic chassis manufactured between 1990 and 2004 (such as the W124, W140, W202, and early W210), an MB Star C3 multiplexer with native serial RS232 communication provides the highest stability. Alternatively, an SD Connect C4 configured with a 32-bit Windows environment or a patched 64-bit HHT-Win virtual machine can also diagnose these models.

Do I need DoIP support for Mercedes-Benz diagnostics?

DoIP (Diagnostics over Internet Protocol) is required if you plan to flash, code, or update high-bandwidth modules such as Command Navigation, MBUX head units (HU5, HU6, HU7), and full digital instrument clusters on vehicles made after 2015. For standard fault scanning and service resets, standard CAN protocols are sufficient.

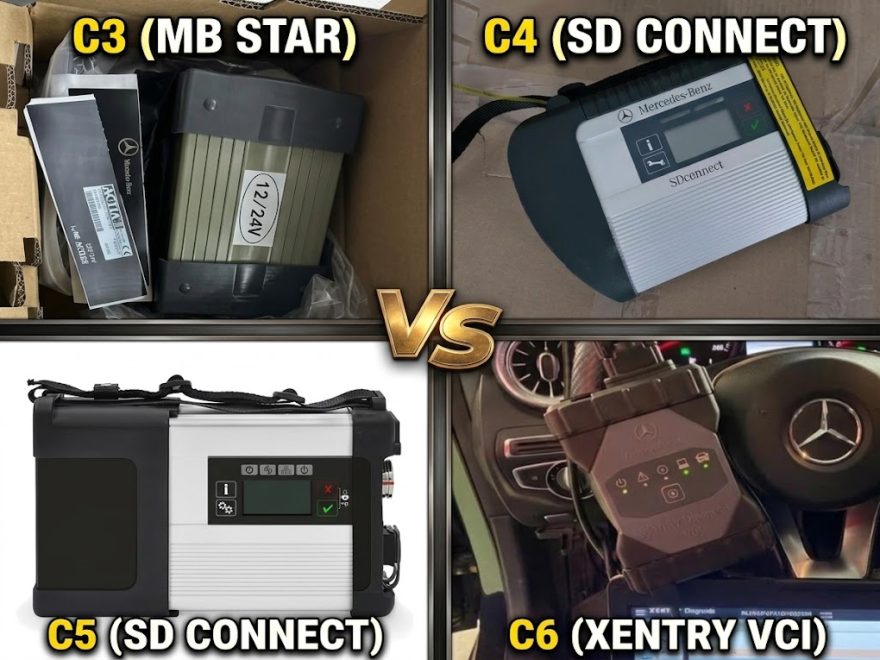

MB Star C3 vs C4 vs C5 vs C6: 2026 Comparison Guide

Whether you run an independent European repair shop or you are an enthusiast diagnosing your own Mercedes-Benz, choosing the right Star Diagnosis multiplexer (MUX) is one of the most critical decisions you will make.

The market is filled with confusing terminology: MB Star C3, SD Connect C4, C5, and Xentry VCI C6. Complicating matters further, the clone market is notorious for mislabeling hardware.

This guide cuts through the marketing noise, breaks down the core hardware and architectural differences, and tells you exactly which multiplexer fits your chassis range, coding needs, and software stack.

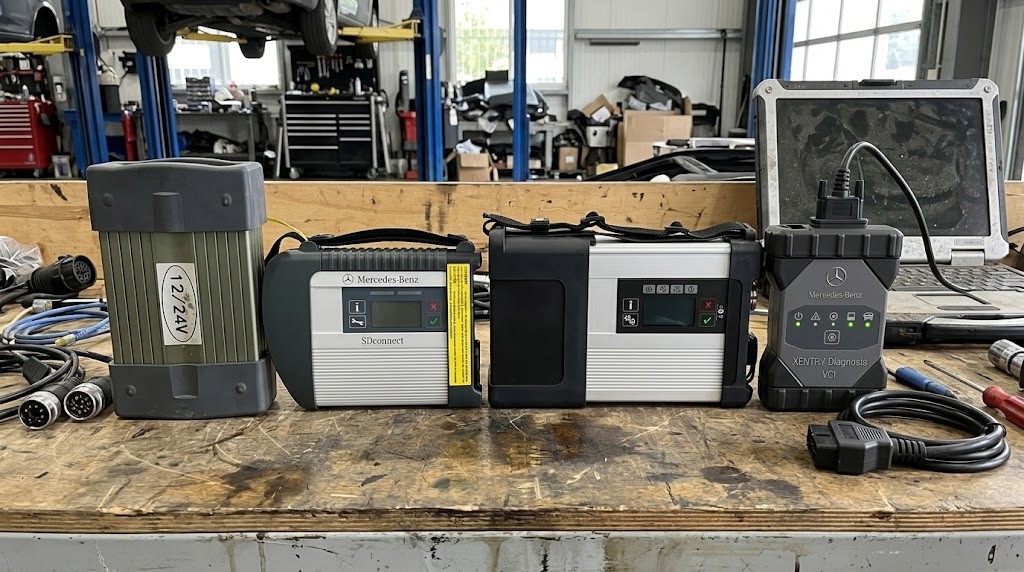

Side-by-side comparison of Mercedes MB Star C3, SD Connect C4, C5, and Xentry VCI C6 multiplexers

Quick Reference: Multiplexer Architecture & Feature Matrix

Feature	MB Star C3 (MUX)	SD Connect C4 (DoIP / Non-DoIP)	SD Connect C5 (OEM vs. Clone)	Xentry VCI C6 (OEM / VXDIAG)
Primary Era	1990s – ~2014	~2008 – Present	~2016 – 2019 (OEM)	2018 – Present
Core Connection	RS232 Serial / RS485	LAN / WLAN (Ad-hoc & Infrastructure)	LAN / WLAN	USB / Wi-Fi / DoIP Direct
DoIP (Ethernet) Support	❌ No	⚠️ Only with modified DoIP PCB boards	❌ (Hardware varies; verify DoIP and PCB architecture); ✔️ (OEM)	✔️ Native DoIP
Protocol Support	K-Line, CAN	K-Line, CAN, CAN-FD (Partial)	Same as C4 (for clones)	CAN, CAN-FD, DoIP, J2534
OS Compatibility	Windows XP / Windows 7 32-bit	Windows 7 / 10 / 11 (64-bit)	Windows 7 / 10 / 11 (64-bit)	Windows 10 / 11 (64-bit)
Engineering Tools	Vediamo 04.x (DAS / HHT-Win)	Vediamo 05.01 / DTS Monaco 8.x	Vediamo / DTS Monaco (Depends on board)	DTS Monaco 8.x/9.x (Limited Vediamo)
Best Chassis Range	W124, W140, W202, W210, W220	W203, W211, W204, W212, W205, W222	Same as C4	W205/W213 (Command flashing), W223, W206, EQS/EQE

Deep Dive: Each Generation Explained

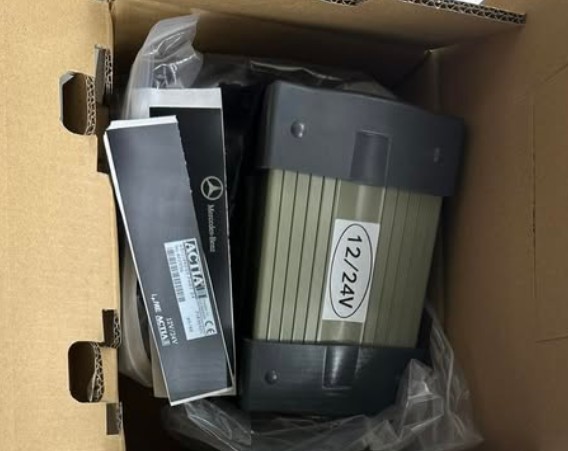

1. MB Star C3 (The Legacy Workhorse)

The MB Star C3 is the original legacy multiplexer for Mercedes-Benz. It was engineered specifically to communicate over K-Line and early CAN-bus protocols via physical serial interfaces.

Strengths: Unmatched compatibility with legacy protocols. If you are diagnosing older chassis (W124, W140, W201, W202) that require the HHT-Win (Hand-Held Tester) software environment, a genuine C3 running a native COM port on Windows XP/7 32-bit provides rock-solid communication that newer units frequently drop.
Weaknesses: Requires legacy hardware (RS232 serial ports; USB-to-RS232 adapters frequently brick or fail communication). Software stopped receiving official updates around 2015. It cannot communicate with newer high-speed Ethernet architecture or handle UDS modules efficiently.
Verdict: Buy only if you exclusively service 1990s to early 2000s classics.

2. SD Connect C4 (The Industry Sweet Spot)

The MB SD Connect C4 transformed Benz diagnostics by introducing Wi-Fi, Ethernet connectivity, and native support for both DAS and Xentry Diagnostics OpenShell (XDOS).

Engineering & Coding Power: The C4 is widely considered the gold standard for independent shops working with Vediamo 05.01.01 and DTS Monaco 8.16. It permits low-level offline ECU flashing, variant coding, and parameter tweaking without requiring an active Mercedes-Benz dealer portal token.

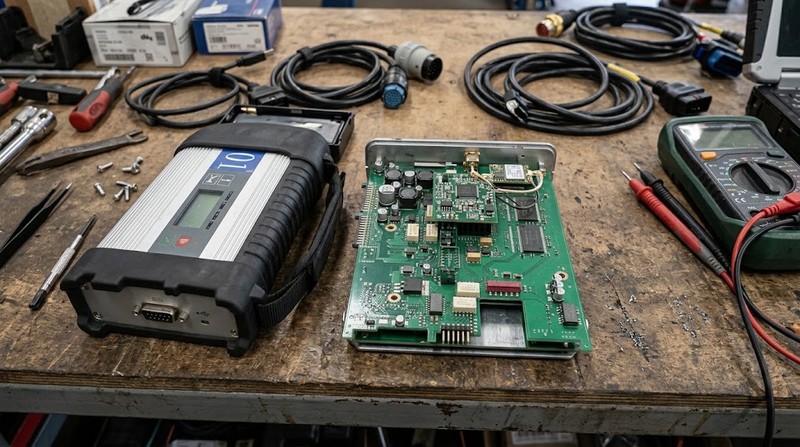

What about DoIP? Standard C4 clones do not support DoIP (Diagnostics over Internet Protocol). However, specialized “C4 DoIP” variants include an upgraded internal PCB and network chipset to flash HU5, HU6, and newer instrument clusters over Ethernet.
Battery & Hardware Tip: Quality C4 units require internal rechargeable batteries (NiMH) for stable power-down sequencing during key-off/key-on tests.
Verdict: The most stable, cost-effective all-around multiplexer for vehicles from 2000 through ~2019.

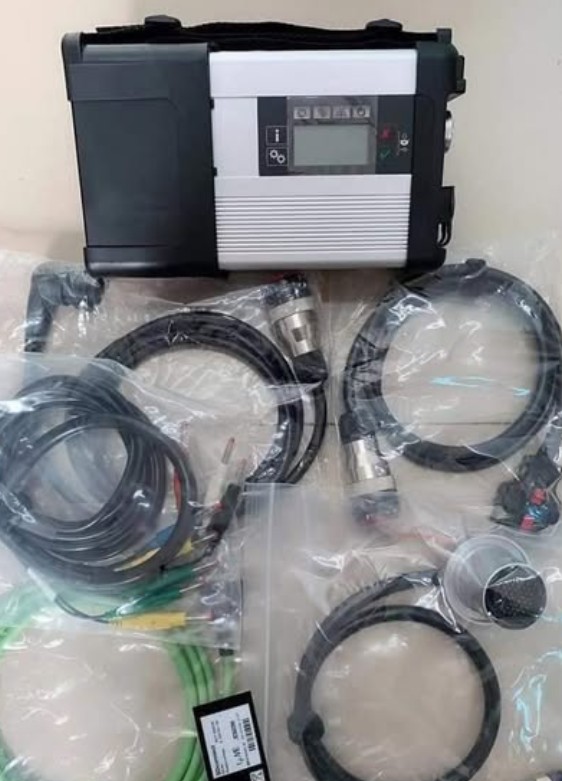

3. MB SD Connect C5 (The Marketing Trap)

Crucial Insider Warning: A major distinction exists between an authentic OEM Mercedes-Benz C5 and aftermarket clone C5 units.

The Reality of Aftermarket C5: Not all aftermarket C5 interfaces use the same hardware. Some C5 products are based on C4-style architecture, while others add DoIP-capable hardware. Check the PCB, DoIP support and protocol specifications rather than buying by the C5 name alone.
OEM C5: Produced briefly by Bosch during the transition between C4 and C6. It is rare and largely superseded by the C6 VCI.
Verdict: Avoid paying a premium for clone C5s. If you want C4 architecture, buy a well-built C4 DoIP in a solid aluminum case instead.

4. Xentry VCI C6 (The Modern Standard)

As Mercedes transitioned to the EVA2 platform, W206 (C-Class), W223 (S-Class), and the EQ lineup, the vehicle communication architecture shifted heavily toward CAN-FD and multi-channel DoIP. This required a shift from classic multiplexers to a Vehicle Communication Interface (VCI) model, built around J2534 / ISO 22900 standards.

Modern Vehicle Support: For W206, W223 and other DoIP-focused platforms, use a properly supported DoIP-capable VCI. Aftermarket products commonly marketed as “C6” should be evaluated by protocol support rather than by the C6 name alone.
DoIP Flashing: Updating telematics, Command/MBUX navigation head units, and digital instrument clusters requires the massive bandwidth of DoIP. A modern C6 handles these high-bandwidth data transfers in minutes, whereas older protocols would time out or take hours.
The Engineering Trade-off: While modern C6 hardware integrates seamlessly with Xentry Diagnostics and DTS Monaco 8.16/9.02, older software like Vediamo 04/05 does not natively communicate with pure J2534 VCIs without complex wrapper configurations.
Verdict: Essential for workshops servicing Mercedes models 2019 and newer, hybrid/EV lineups, or updating modern MBUX systems.

Critical Factors: How to Choose the Right Tool

A. What Years & Chassis Are in Your Bay?

Pre-2004 (W124, W140, W202, W210): Choose MB Star C3 or an SD Connect C4 configured with working 38-pin cables and HHT-Win emulation.
2004 – 2019 (W204, W211, W212, W221, W205, W222): The SD Connect C4 (DoIP version) offers the most stable connection across DAS, Xentry, and Vediamo.
2020 – Present (W223, W206, W167, EQ Series): You must step up to the MB Star C6 / VCI. Older tools will not read all sub-networks or modules on newer CAN-FD backbones.

B. Coding: SCN Online vs. Offline Development

Online SCN Coding: All hardware options (C4, C5, C6) can support online SCN coding, provided you have an active, paid Mercedes-Benz B2B account with login credentials. The hardware itself does not bypass online authentication.
Offline Coding & Retrofits: If you intend to disable Start/Stop, unlock AMG menus, or retrofit headlights using Vediamo or DTS Monaco, a high-quality C4 DoIP remains the most flexible and stable tool across enthusiast forums and calibration shops.

Final Verdict & Buying Recommendation

For DIYers & Independent Mechanics (Pre-2020 Models): Buy a high-grade SD Connect C4 with DoIP support. It offers the widest software backward-compatibility, reliable Wi-Fi, and rock-solid performance with Vediamo and DTS Monaco.
For Modern Mercedes Specialists (2020+ & EVs): Invest in an MB Star C6 VCI. The investment is necessary to communicate with DoIP-dependent MBUX units and modern CAN-FD bus networks.
Consider a C5 only when its actual hardware and DoIP capabilities are clearly documented.

Explore More MB Star Diagnostic Tools

Still not sure which Mercedes diagnostic setup fits your workshop?

Browse the complete MB Star Diagnostic Tools collection at OBD2.LTD to compare available C3, C4, C5, C6, XENTRY VCI, software and complete laptop diagnostic packages.

Whether you service older Mercedes vehicles or newer DoIP platforms, you can compare hardware, software versions and package options in one place.

→ Shop All MB Star Diagnostic Tools

FAQ

Does MB Star C4 support DoIP?
Standard C4 hardware does not. Modified C4 DoIP versions may add Ethernet/DoIP hardware.

C4 vs C6: which is better?
C4 is ideal for many older Mercedes platforms; a DoIP-capable C6/VCI is better for newer W206/W223-era vehicles.

Can C4 diagnose W206?
For complete W206 diagnostics, use a proper DoIP-capable VCI.

Is C5 better than C4?
Not necessarily. C5 hardware varies, so compare its PCB and protocol support.

Can C4/C6 perform SCN coding?
Compatible hardware can provide vehicle communication, but online coding also requires appropriate XENTRY authorization.
