How to Read Pincode & Add 2022 Hyundai i10 ID4A by Autel KM100

Autel MaxiIM KM100 IMMO Key Programmer can support to read pincode & add ID4A keys for 2022 Hyundai Grand i10 successfully.

Autel KM100 Program 2022 Hyundai Grand i10 Key

1. Generate Key

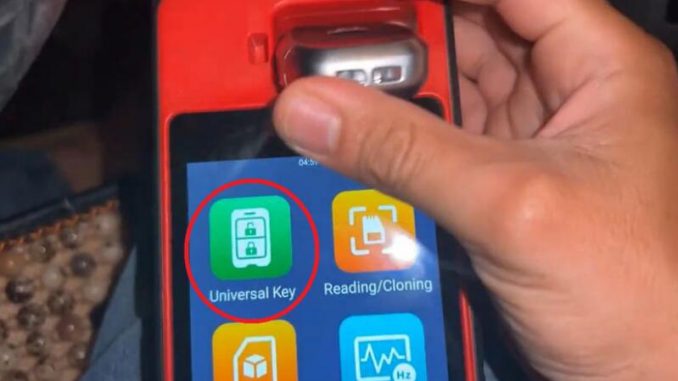

Put the Autel IKEY Smart Key into KM100 slot,
Universal key >> Hyundai Grand i10(AI3) 2020-2022 >> Generate universal key
Completed.


2. Read Pin Code
IMMO >> Hyundai >> Manual selection >> Europe >> I10(AC3) >> 2020- >> Smart key >> Yes >> Immo status scan >> Read PIN >> Read Pin code(4A Smart card)



This function only supports models with 4A chip type smart card. Please ensure the key type is correct! Press “Yes”.
Press the START button, turn the Hazard warning light on.
The password that is read: 439476

3. Add Keys

Add key >> Start
This function supports add key and all key lost.
Performing this function will erase all existing keys, all the old keys must be relearned again to be able to use normally. Press “Yes” to continue.

Turn the ignition off.
(Note: the instrument screen is black.)
Open and then close the driver door once!
Please enter the 6-digit security code: 439476
OK >> Yes
Within 5s after OK is pressed, use the back or top of the smart key to hold down the START button for 5s until the anti-theft lamps flash.
(If the operation failed with the prompts, please remove the key case and re-execute the above steps so that the key chip can be successfully programmed.)

Programming succeeded.
Press “Yes” to program next one, “No” to complete.

Test the key, it can normally work.

Successfully done.


Besides, it also supports all keys lost & remote learning. Details please check below:

Autel KM100 Coverage: Hyundai(EU)

Vehicle model

Year

System

Add key

All keys lost

Read password

Remote learning

IMMO part replacement

I10(IA)

2014-2016

immobilizer

By OBD

By OBD

By OBD

By OBD

ECM, SMARTRA

I10(IA)

2014-2016

Keyless system

By OBD

By OBD

By OBD

×

ECM, SMK, ESCL

I10(IA)

2017-

immobilizer

By OBD

By OBD

By OBD

By OBD

ECM, SMARTRA

I10(IA)

2017-

Keyless system

By OBD

By OBD

By OBD

×

ECM, SMK, ESCL

I10(PA)

2008-2010

Immobilizer(Other)

By OBD

By OBD

By OBD

By OBD

ECM, SMARTRA

I10(PA)

2008-2010

Immobilizer(TCI-U)

By OBD

By OBD

By OBD

By OBD

ECM, SMARTRA

I10(PA)

2011-2017

Immobilizer

By OBD

By OBD

By OBD

×

ECM, SMARTRA
