How to use OBDSTAR X300 DP Plus + P003 Kit to read Continental PCR2.1 IMMO data on Bench

How to use OBDSTAR X300 DP Plus + P003 Kit to read Continental PCR2.1 IMMO data on Bench? This is a tutorial on how to do, read the post below to learn more.

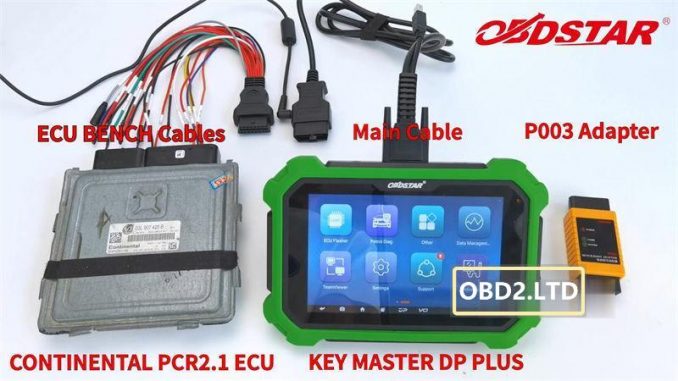

Tools Required
Continental PCR2.1 ECU
OBDSTAR X300 DP Plus(Key Master DP Plus)
P003 Bench Adapter
ECU Bench Cables
Main Cables

Note: Please keep X300 DP Plus in charging and communication in the whole process.

Procedure
Path: ECU Flasher >> Continental >> Continental Newest Version >> Manual Select System >> Continental PCR2.1(TC1796)(BENCH) >> Read IMMO data

Click “Bench mode wiring” in lower left to check wiring diagram.
Connect P003 adapter with main cable & ECU Bench cables.
Connect ECU Bench cables with Continental PCR2.1 ECU according to wiring diagram.

Click “Enter” to read IMMO data.
Rename & save data file.
IMMO data was read out successfully.

In addition, OBDSTAR Boot P003 also supports to work with X300 Pro4 for Audi, Citroen, DS, Mahindra, Peugeot, Skoda, SEAT, VW ECU reading. For more detailed models, please consult us.
